Detector type: 17μm Uncooled Microbolometer
Refresh rate: 50 Hz
Resolution: 384x288

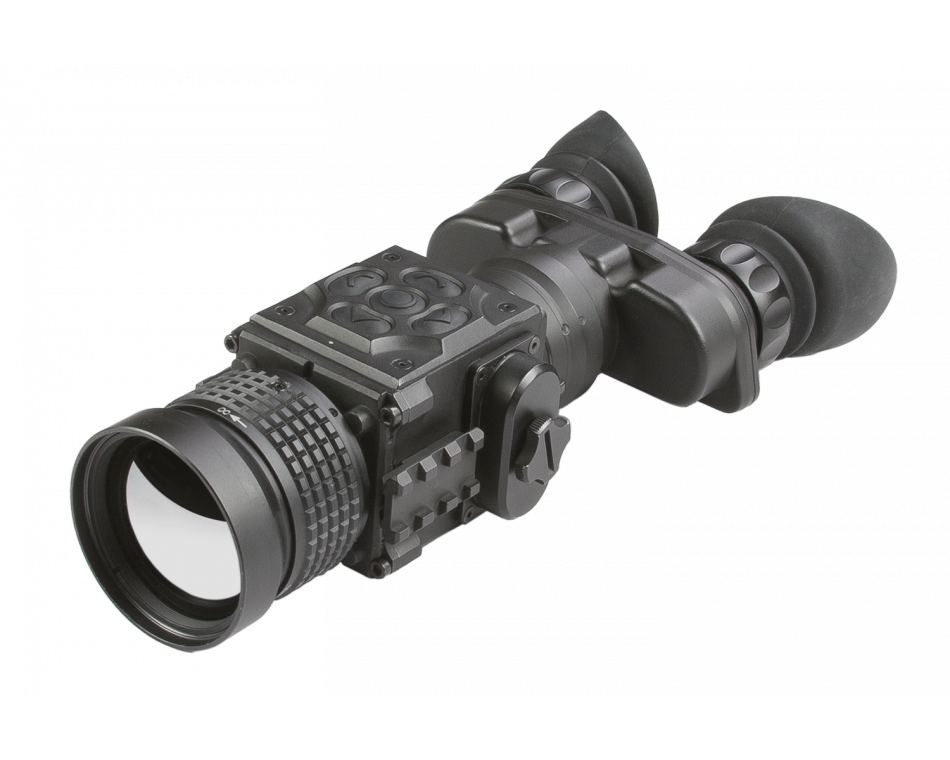

AGM Explorator is the newest and most advanced thermal imaging device presently on sale.The binoculars are constructed of high grade aluminum and magnesium alloy, which ensures that they are both durable and light-weight. Because of its watertightness, the equipment operates well in harsh weather and difficult ambient conditions. The Explorer is offered in two modifications - with germanium objectives with diameters of 50 and 75 mm, which makes it possible to choose the most appropriate option for the given mission. The device can be easy to install on a stand, allowing the operator to use the thermal binoculars conveniently / without using hands. The Explorator's convenient interface, handy and easy to use keys make it incredibly easy to adopt and use. The thermal imager has ten various image palette choices: white hot/black hot, etc., which could be readily customized according to different ambient circumstances.This advanced biocular unit can operate with both two CR123A 3V lithium batteries and two CR123 rechargeable batteries with voltages from 3.0V to 3.7V. In fact, an outdoor battery pack (5 V) attached through a micro-USB port offers extra working time
Detector type
17μm Uncooled Microbolometer
Refresh rate
50 Hz
Resolution
384x288
Lens system
50 mm; F/1.0
Optical magnification
2.5×
Field of view (H × X)
7.5° x 5.6°
Digital zoom
1×, 2×, 4×
Diopter adjustment range
-5 to +5 dpt
Focusing range
10 m to infinity
Display
HD Display 1024x768
Video/Photo Format
AVI / JPG
Temperature imaging palettes
11 Image palettes
Interfacing
S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (External Battery Pack)
Battery Type
Two CR123A 3V Lithium Batteries
Battery Life (Operating)
Up to 5 hr
Power supply
5V USB / 3.6~7.2V
Operating Temperature Range
-40°C to +70°C (-40°F to +158°F)
Degree of Protection
IP67
Weight
0.75 kg (1.6 lbs)
Overall Dimensions
273 x 125 x 64 mm (10.7 x 4.9 x 2.5 in)
Package Inludes
Thermal Imaging Bi-Ocular, Lens Cloth, Soft Carrying Case, User Manual
