Image Intensifier Tube: Gen 3+ "Auto-Gated" "White Phosphor" Level 1
Magnification: 1x (3x and 5x optional)
Lens System: 27 mm; F/1.3
FOV: 40°
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

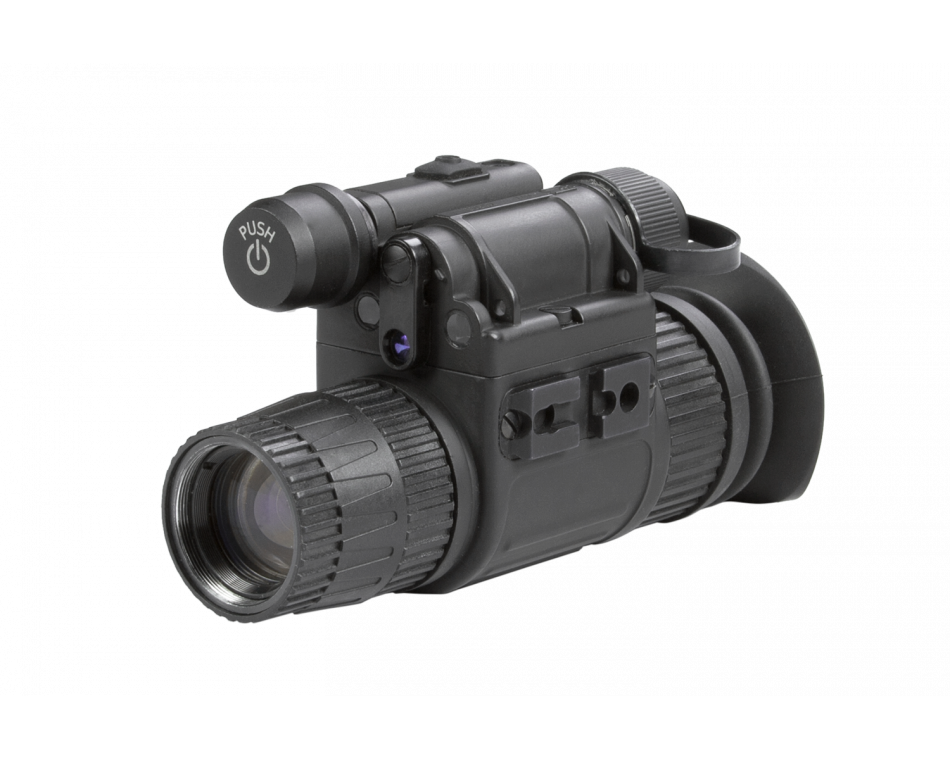

The NVM-40 is the standard by which all compact multi-use monoculars should be judged, now and in the future. The NVM-40 employs optics that are equal or superior to current Military-issue night vision devices, built into a rugged, compact, and ergonomic composite housing. We built this device to exceed user expectations and MIL-SPEC-810 specifications; as a result, the NVM-40 offers unmatched performance even in rain, salt water, temperature extremes, and high-humidity environments. The NVM-40 is available with a vast array of accessories, including 3x and 5x magnification lenses for mid to long-range viewing; head or helmet mounts to enable hands-free operation; and, a detachable IR illuminator for long-range use.
Warning: California's Proposition 65
Image Intensifier Tube
Gen 3 Auto-Gated "White Phosphor Level 1"
Resolution
64-72 lp/mm
Field of view cleanness by zone
Gen 3 IIT 3AW1 is offered with high quality and practically no visible spots in Zone 1.
Magnification
1x (3x and 5x optional)
Lens System
27 mm; F/1.3
FOV
40°
Focus Range
0.25 m to Infinity
Eye Relief
17 mm
Diopter Adjustment
-6 to +2 dpt
Led Indicators
- Low Battery - IR On - Excessive Light Conditions
Automatic Brightness Control
Yes
Infrared Illuminator
Yes; Two power levels
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 40 hours at 20°C
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +50°C (-58°F to +122°F)
Weight
0.34 kg (0.75 lbs)
Overall Dimensions
175 × 57 × 80 mm (6.9 × 2.2 × 3.1 in)
Package Includes
Night Vision Monocular, Lens Cloth, Soft Carrying Case, Manual
Select a row below to filter reviews.
Warning: California's Proposition 65
Image Intensifier Tube: Gen 3 Auto-Gated "Level 1"
Magnification: 1x
Lens System: 27 mm, F/1.3
FOV: 40°
