Detector type: 12 μm VOx Uncooled Focal Plane Arrays
Refresh rate: 25 Hz
Resolution: 256 x 192
FOV: 9.2° x 6.9°
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

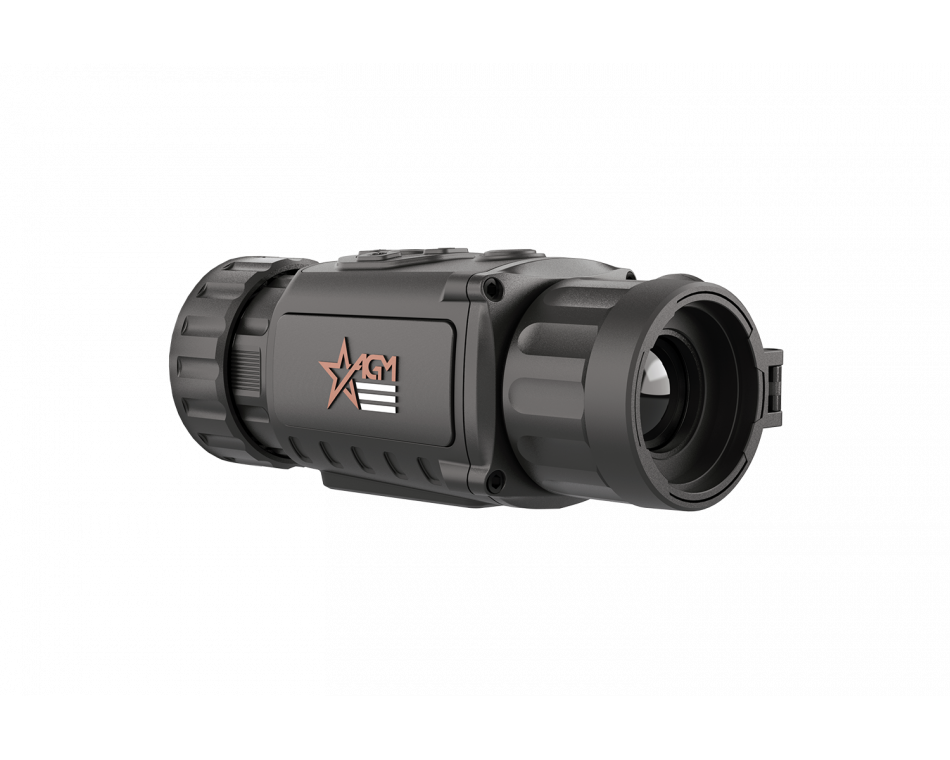

The AGM Rattler TC19-256 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment.
The Rattler clip-on is a perfect addition to any hunter's arsenal. Equipped with a 19mm germanium lens and a 256x192 resolution 12 micron high-sensitivity thermal sensor, this unit has a detection range of 950 yards. Rattler TC provides a clear image under harsh environmental conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The product is mainly applied to scenarios such as patrolling, hunting, overwatch, etc. The Rattler TC can easily be attached in front of day scopes with magnification up to 8x for short and medium range use.
This unit also comes packed with all the features that many Rattler users have come to expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, AGM Connect app compatibility for storing and sharing images and videos, 16 GB on-board storage, 4.5 hours of battery life on two CR123 batteries, external power capability through the unit’s USB-C plug and a high-quality American Defense Manufacturing quick detach mount.
Warning: California's Proposition 65
Magnification
1x
Shock and vibration
750 g/ms
Exit Pupil Diameter
22 mm
Detector type
12 μm VOx Uncooled Focal Plane Arrays
Response Waveband
8 μm to 14 μm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
Sensor 25 Hz / OLED 50 Hz
Resolution
256 x 192
Lens system
19 mm, F1.0
Field of view (H × X)
9.2° x 6.9°
Monitor
1024x768, 0.39 inch, OLED
Storage
16 GB EMMC
Record Video
On-board video recording
Capture Snapshot
Yes
Battery Type
Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
Battery Operating Time
Up to 4.5 hours continuous running (@25°C, WiFi off) Up to 4.0 hours continuous running (@25°C, WiFi on)
Battery Capacity Display
Yes
Operating Temperature Range
-20°C to 55°C (-4°F to 131°F)
Overall Dimensions
153 mm × 62 mm × 59 mm (6.0 × 2.4 × 2.3 in)
Protection Level
IP67
