AGM RATTLER TS25-256

Part #3143855004RA51
0 reviews | Write a review
Part #3143855004RA51
0 reviews | Write a review

Characteristics

Detector type: 12μm, Uncooled, 25 Hz

Refresh rate: 25 Hz

Resolution: 256 × 192

FOV: 7.0° × 5.3°

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Compare
Package Includes
  • Mount
  • USB Cable
  • Lens Tissue
  • User Manual
  • Carrying Bag
  • CR 123 Batteries


$1,318.00
Quick Order
Add to cart

Description And features

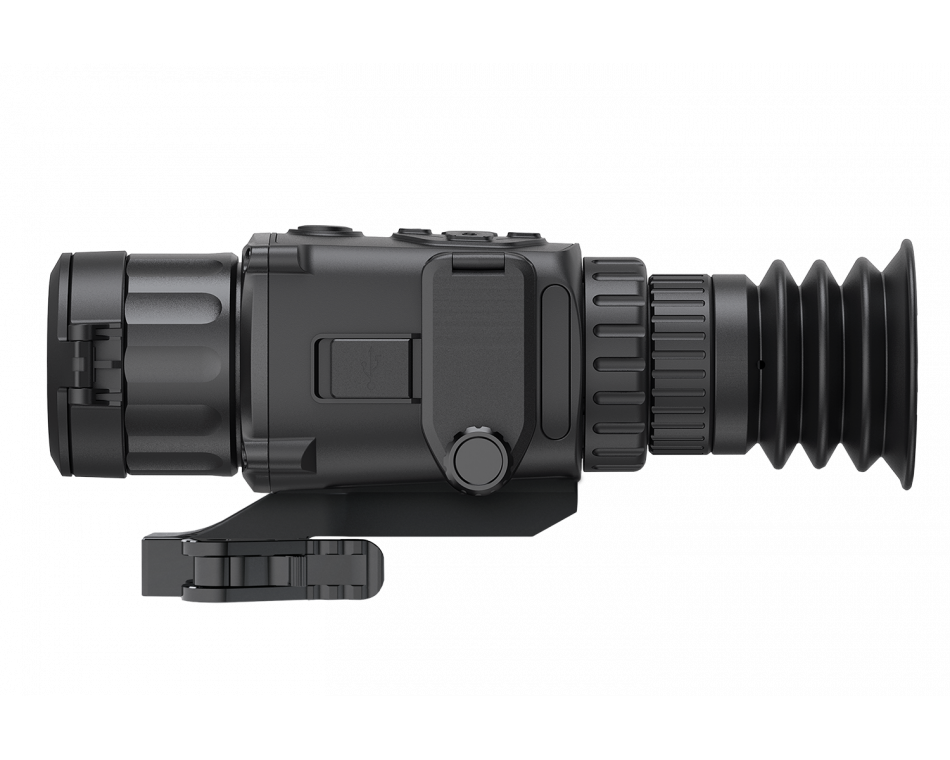

The Rattler TS25-256 is a perfect addition to any hunter's arsenal. Equipped with a 25mm germanium lens and a 256x192 resolution thermal sensor, this unit has a detection range of 950 yards, and a base magnification of 3.5X. This base magnification, combined with a wide field of view, makes this scope a truly versatile optic. The Rattler series of thermal scopes were specifically designed to be compact and lightweight, as this not only ensures its small footprint can be used on a multitude of shooting platforms, but also gives the series secondary use as a thermal monocular as well.

This unit also comes packed with all the features that many Rattler users have come to expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, 8X digital zoom, Picture-in-picture, AGM Connect app compatibility for storing and sharing images and videos, one-shot digital zeroing process, 4.5 hours of battery life on (2) CR123 batteries, external power capability through the unit’s USB-C plug and a high-quality American Defense Manufacturing quick detach mount which quickly allows users to seamlessly shift from riflescope to monocular quickly and easily.


Warning: California's Proposition 65

  • 256×192 thermal resolution, 12μm, high sensitivity detector (NETD <35mK)
  • Image processing technology: Adaptive AGC, DDE, 3D DNR
  • 1024×768 resolution 0.39-inch OLED display
  • 8x digital zoom
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Supports distance measurement
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • 3-Year warranty

Specifications

Battery life (operating at 20°c)

Up to 4.5 hr

Reticle

5 types, 3 colors, on/off

Detector type

12μm, Uncooled, 25 Hz

Standby Mode

Yes

Resolution

256 × 192

Lens system

25 mm; F/1.0

Field of view (H × X)

7.0° × 5.3°

Digital zoom

1×, 2×, 4×, 8×

Eye relief

45 mm

Display

0.39-inch, OLED, 1024×768, 50 Hz

Storage

Built-in EMMC (16 GB)

Battery Type

Two CR123 (3V) Lithium

External power supply

5 VDC/2 A, USB Type-C interface

Operating Temperature Range

-20°C to +55°C (-4°F to +131°F)

Degree of Protection

IP67

Weight

568 g ( 1.16 lb)

Overall Dimensions

187 × 63 × 80 mm (7.4 × 2.5 × 3.1 in)

Package Inludes

Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual

Magnification

3.5×
