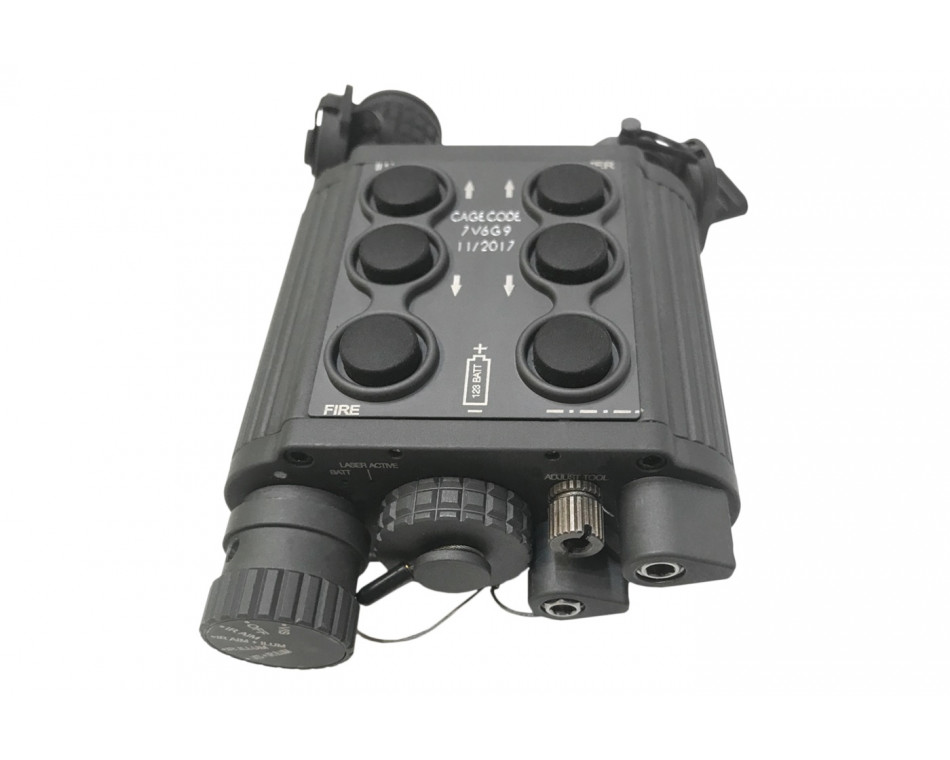

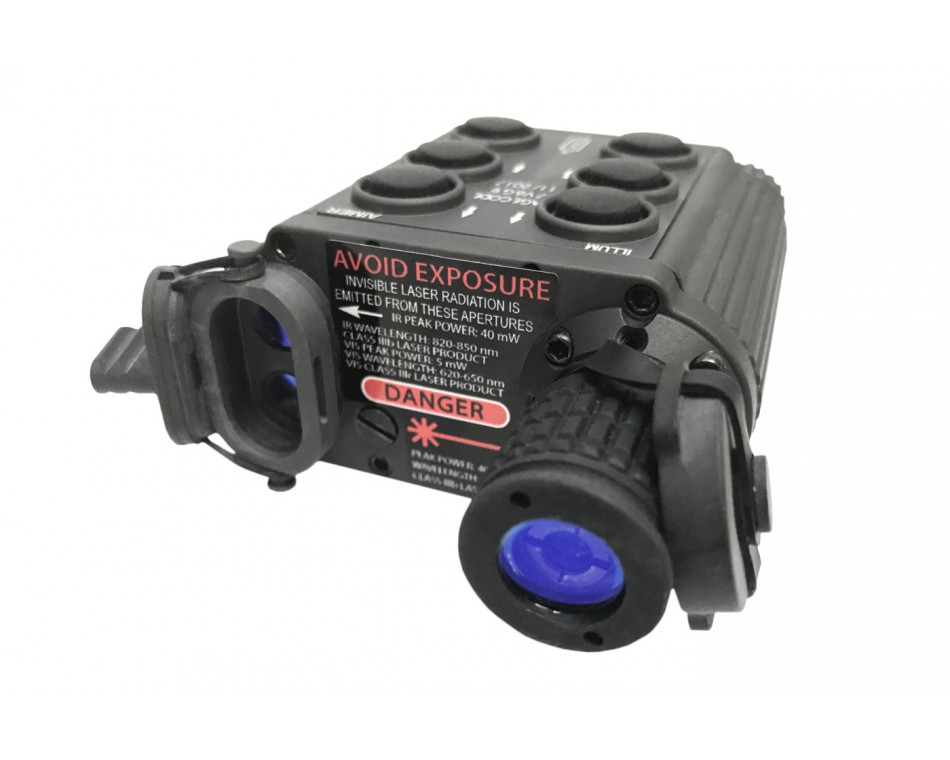

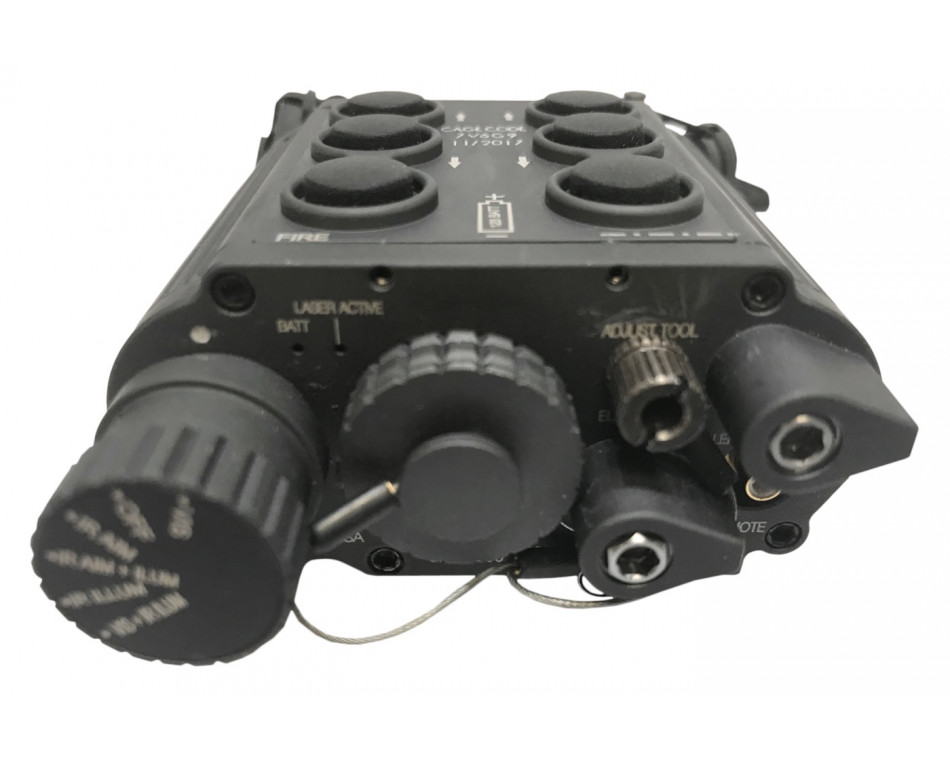

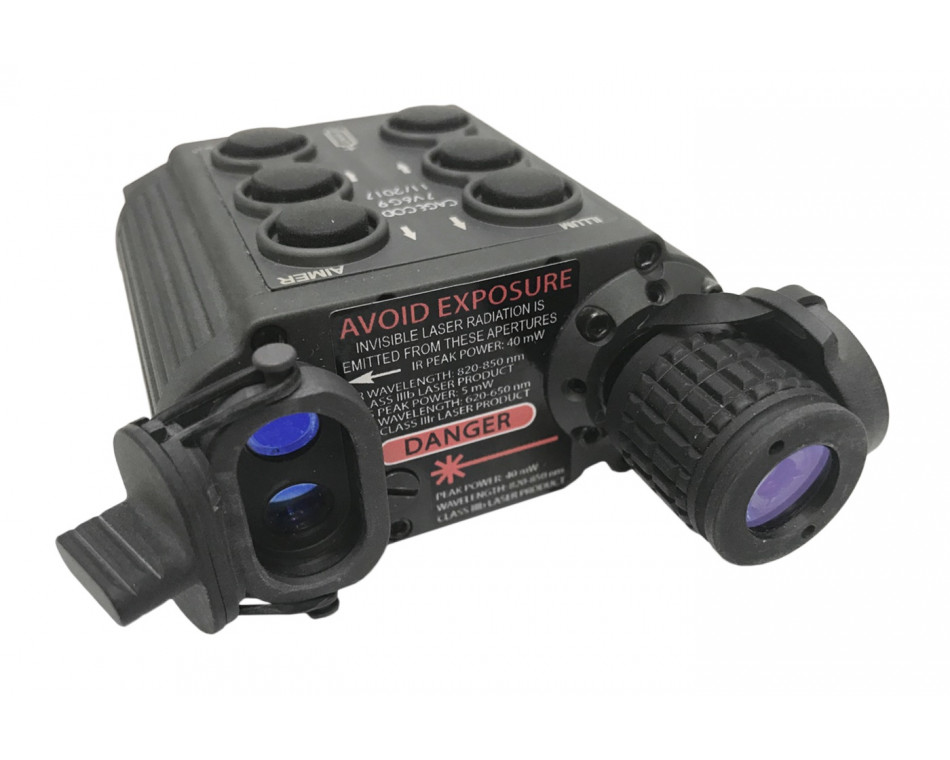

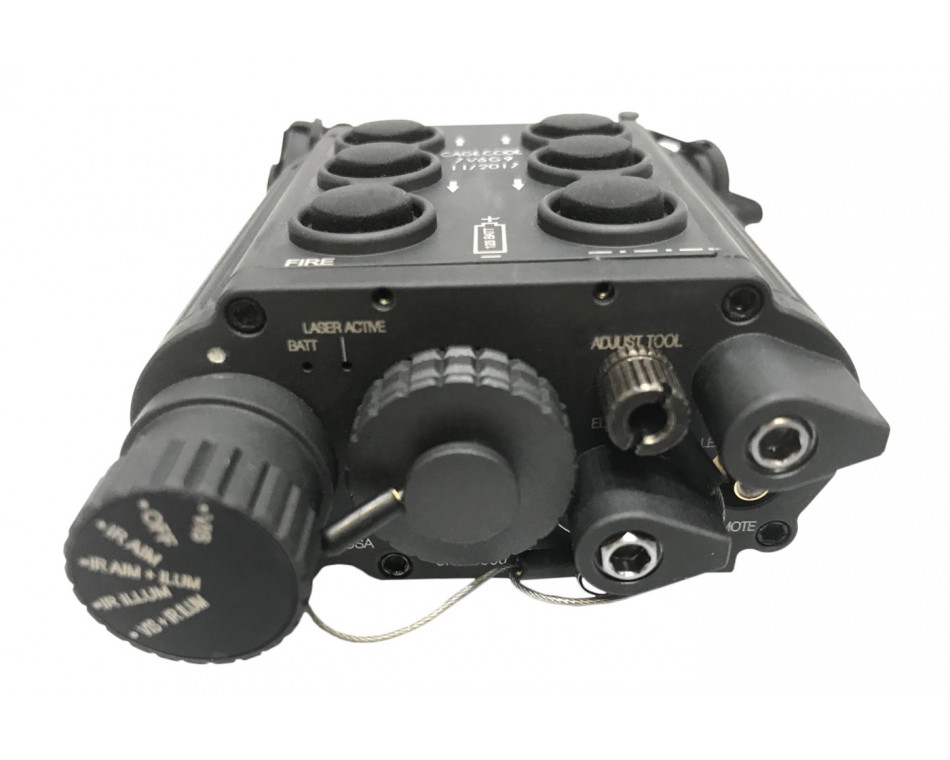

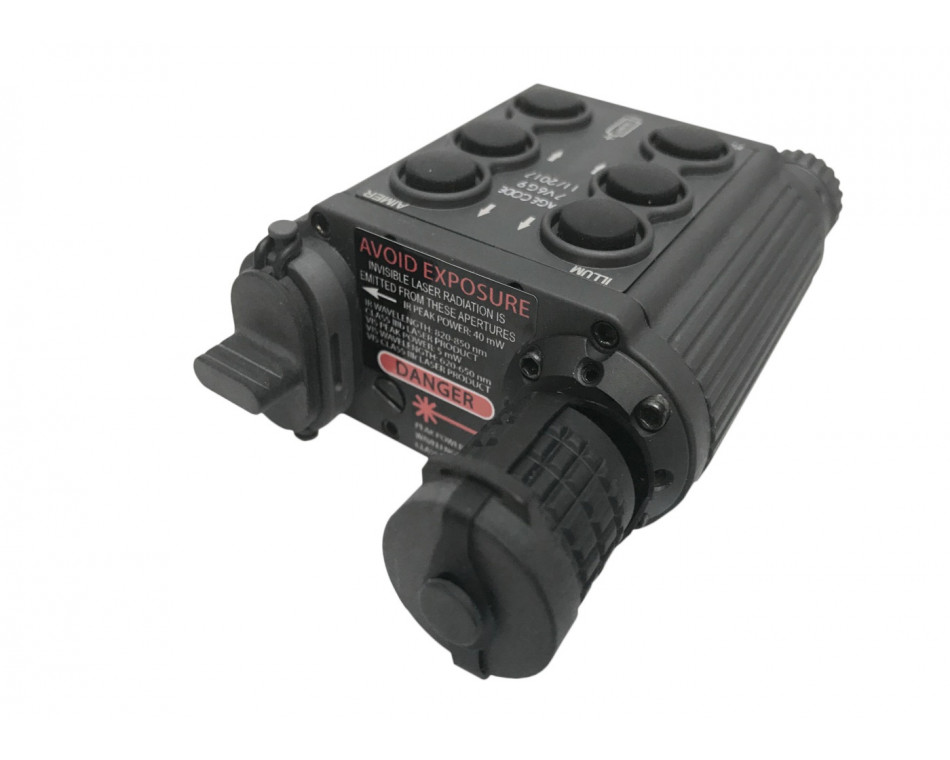

Mil-SpecRMSALSquad Aiming Laser is a CLASS IIIb aiming laser composed of a green or invisible sighting laser, a near infrared (near infrared) and an adjustable close infrared spotter. The RMSAL option is to enable an operator having high concentration of aiming lasers for accurate targeting and sighting of sighting lasers visible in low light situations and in conjunction with night vision products for night use applications. The focused near infrared illuminator overflows the field of interest with near infrared light, which is only seen when using night vision devices. RMSAL output power can be electronically regulated from approx. 50 µW to 25 mW at 256 steps. Furthermore, the aiming lasers may be set with a user selectable trigger, whether in fixed wave mode or in 4 Hz pulse type mode.
Divergence
IR LASER - 0.5 mRad VISIBLE LASER - 0.5 mRad IR ILLUMINATOR - 1-108 mRad
Battery type
One (1) CR123 3.0VDC lithium battery
Class
IR LASER - IIIb (near IR) VISIBLE LASER - IIIr IR ILLUMINATOR - IIIb (near-IR)
Output power
IR LASER - 50 μW (Low) 25 mW (High) VISIBLE LASER - <5.0 mW IR ILLUMINATOR - 500 μW (Low) 25 mW (High)
Operating distance
IR LASER - > 200 m (Low)>2,000 m (High) VISIBLE LASER - > 25 m in direct sunlight IR ILLUMINATOR - > 100 m (Low) >2,000 m (High)
Wavelength
IR LASER - 820 nm–860 nm VISIBLE LASER - Red 605 nm–665 nm, Green 500 nm–530 nm IR ILLUMINATOR - 820 nm - 860 nm
Battery life
>10 hours in near-IR Aim Mode
Operating Temperature
-51°C to 57°C
Storage Temperature
-57°C to 85°C
Waterproof
Upto 20m for 1 hour
Weight
0.2 kg ( 0.44 lbs)
Color (housing)
Black or Tan
Overall dimensions
106 x 81 x 48 mm (4.2 x 3.2 x 1.9 in)
