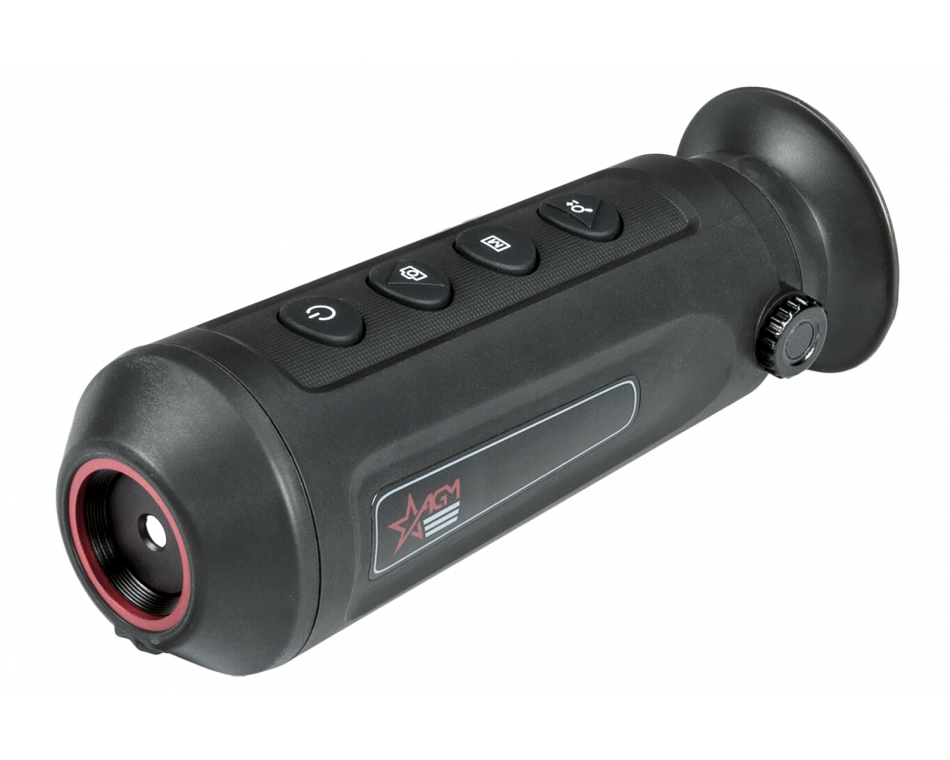

AGM ASP-MICRO TM160

Thermal imaging
Part #3093251001AM10
0 reviews | Write a review
Thermal imaging
Part #3093251001AM10
0 reviews | Write a review

Characteristics

Detector type: Vanadium Oxide Uncooled Focal Plane Arrays

Refresh rate: Sensor 25 Hz

Resolution: 160x120

FOV: 24.7° x 18.7°

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Compare
Package Includes
  • USB Cable
  • Wrist Strap
  • Packing Box
  • Operators Manual
  • Lens Tissue
  • EU PLug
$439.00
Quick Order
Add to cart

Description And features

The AGM Asp-Micro TM160 thermal monocular has become synonymous with two words: Reliability and Simplicity. The Asp-Micro TM160 is a great entry-level thermal monocular for anyone wanting to experience the capabilities of thermal imaging. Equipped with a 160x120 resolution thermal sensor and a 720x540 LCOS display, it’s a great tool for hunters, campers and general outdoors enthusiasts who want or need to detect the presence of other animals or people in complete darkness. The range of uses include blood-tracking for hunters which aids in game retrieval, enhancing safety and awareness for hikers and camp sites and general nighttime curiosity. The Asp-Micro TM160 still comes equipped with many of the most popular software features that experienced thermal users have come desire: up to 10 hours of battery life from an internal rechargeable battery, Wi-Fi hotspot, AGM Connect app compatibility for exporting and sharing images and videos, 0.5-2X magnification, 8GB of internal storage with no need for a memory card and a 3 Year Transferable Warranty.


AGM ASP Micro Overview. Read more at TheFirearmBlog



FUNCTIONS:

Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot capturing.
Digital Zoom:
Device supports 1×, 2×, and 4× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

Warning: California's Proposition 65

  • 160×120 resolution, high sensitivity detector
  • Adaptive AGC, DDE, 3D DNR
  • 720×540 resolution LCOS display
  • Built-in rechargeable Lithium battery
  • More than 10 hours continuous running (with Wi-Fi hotspot function off)
  • Wi-Fi hotspot
  • Type-C interface
  • 3-Year warranty

Specifications

Magnification

0.5x - 2x

Detector type

Vanadium Oxide Uncooled Focal Plane Arrays

Response Waveband

8μm to 14μm

FFC (Flat Field Correction)

Auto, Manual, External Correction

Highest Temperature Spot Tracking

Yes

Standby Mode

Yes

Refresh rate

Sensor 25 Hz / OLED 50 Hz

Resolution

160×120

NETD

less than 35 mk (@25°C), F#=1.1

Lens (focal length)

6.2 mm

Field of view (H × X)

24.7° x 18.7°

Digital zoom

1×, 2×, 4×

Display

720×540, 0.2 inch, LCOS

Storage

Built-in memory module (8 GB)

Record Video

On-board video recording

Capture Snapshot

Yes

Battery Type

Built-in rechargeable Lithium battery

Wi-Fi

Yes

Battery Operating Time

Up to 10 hours

Battery Capacity Display

Yes

Power supply

5 VDC/2 A, 1.5 W

Operating Temperature Range

-20°C to 55°C (-4°F to 131°F)

Weight

0.25 kg (0.55 lb)

Overall Dimensions

161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)

Protection Level

IP67
