Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
Refresh rate: 50 Hz
Resolution: 384x288
FOV: 24.7° x 18.7°
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

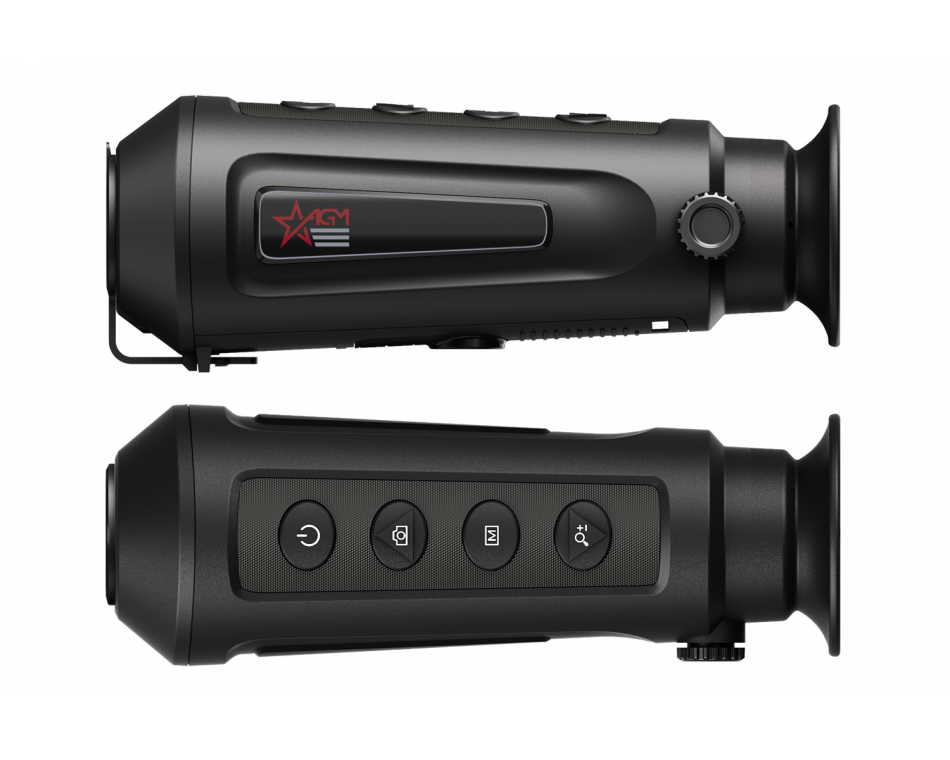

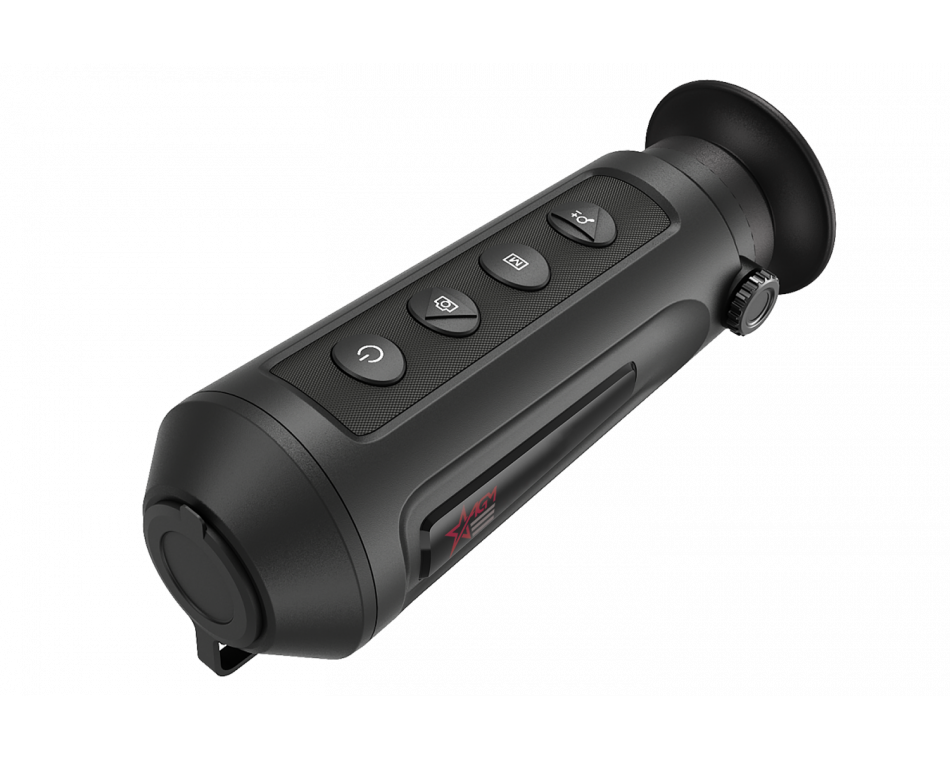

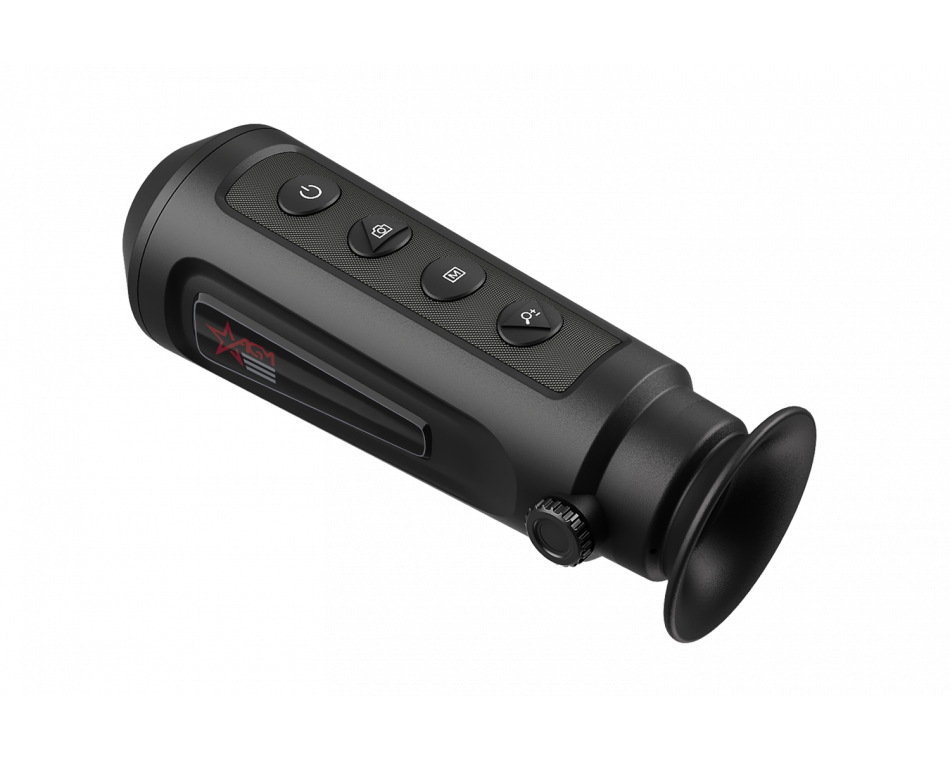

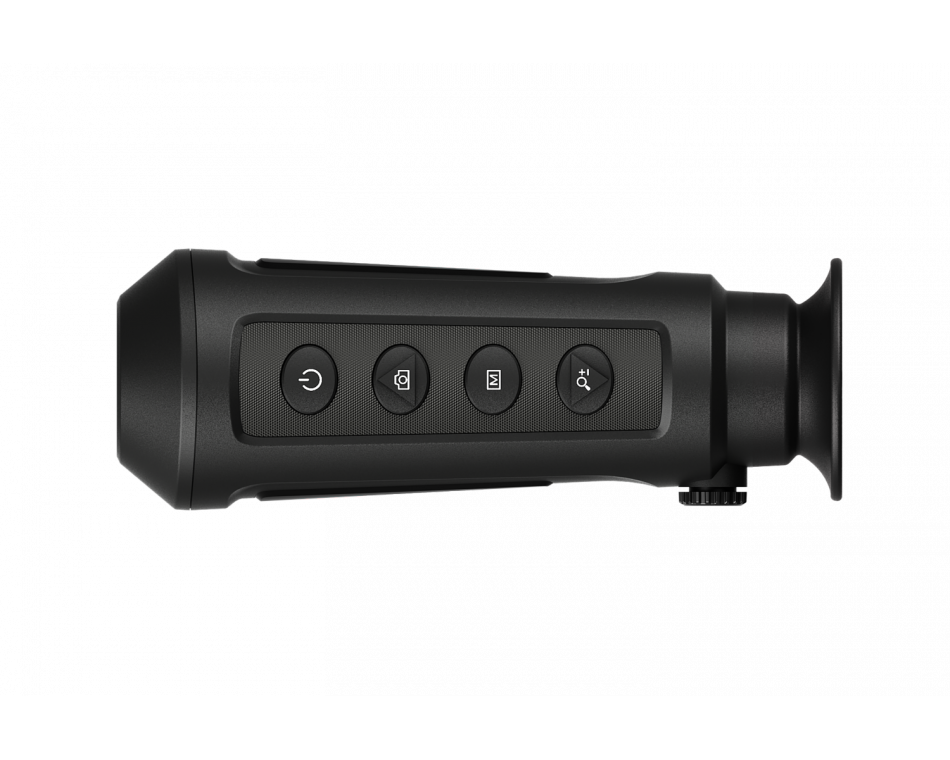

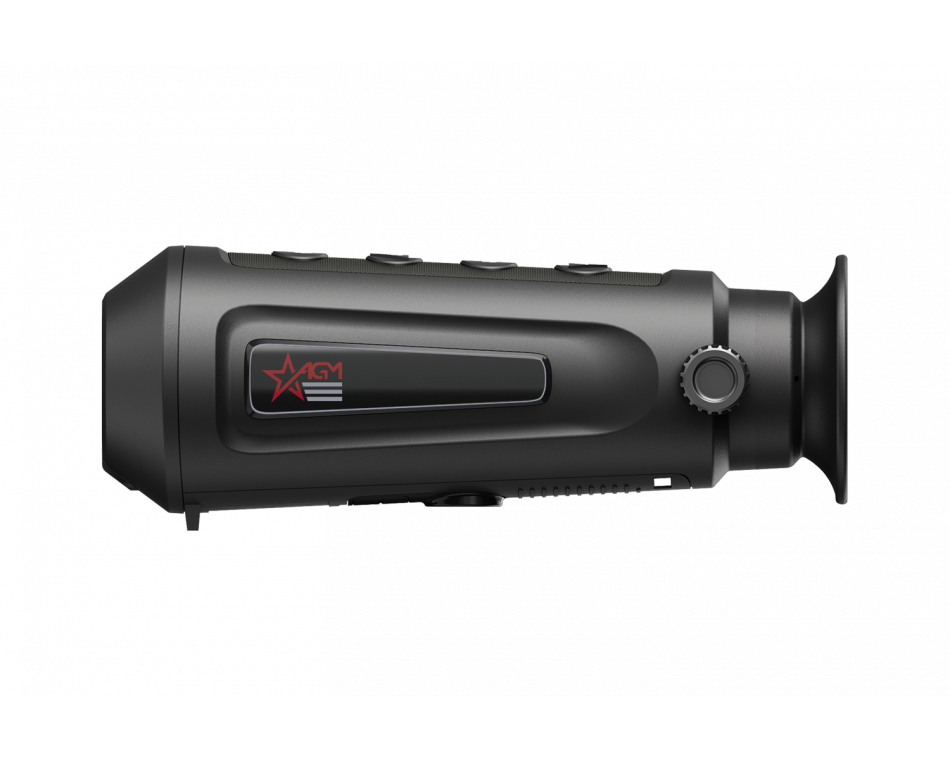

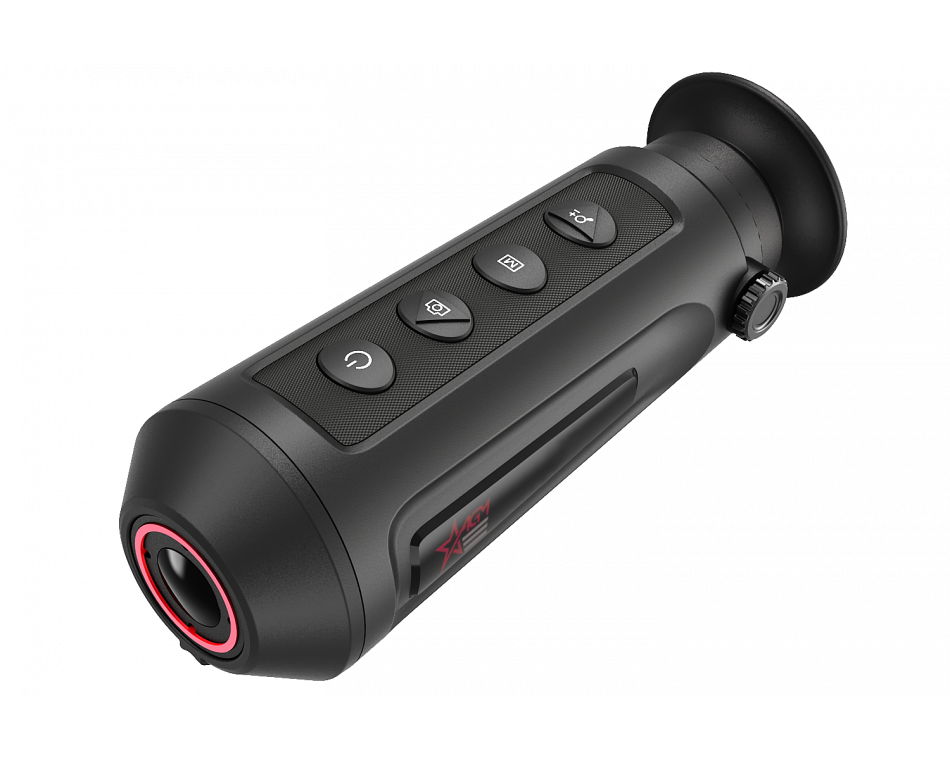

The Asp-Micro handheld observational thermal monocular is equipped with a 160×120 or 384×288 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, antismuggling, criminal seizing, hiking, travel, and hunting, etc.
Warning: California's Proposition 65
FUNCTIONS:
Distance Measurement:
The device realizes distance measurement function after marking
the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot
capturing.
Digital Zoom:
Device supports 1×, 2×, 4× and 8x digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters
via APP after being connected to your phone.
Warning: California's Proposition 65
Detector type
Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband
8μm to 14μm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
384×288
NETD
less than 35 mk (@25°C), F#=1.0
Lens (focal length)
15 mm
Field of view (H × X)
24.7° x 18.7°
Digital zoom
1×, 2×, 4×, 8x
Display
720×540, 0.2 inch, LCOS
Storage
Built-in memory module (8 GB)
Record Video
On-board video recording
Capture Snapshot
Yes
Battery Type
Built-in rechargeable Lithium battery
Wi-Fi
Yes
Battery Operating Time
More than 7 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display
Yes
Power supply
5 VDC/2 A, 1.5 W
Operating Temperature Range
-20°C to 55°C (-4°F to 131°F)
Weight
0.25 kg (0.55 lb)
Overall Dimensions
161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)
Protection Level
IP67
Magnification
0.5x
