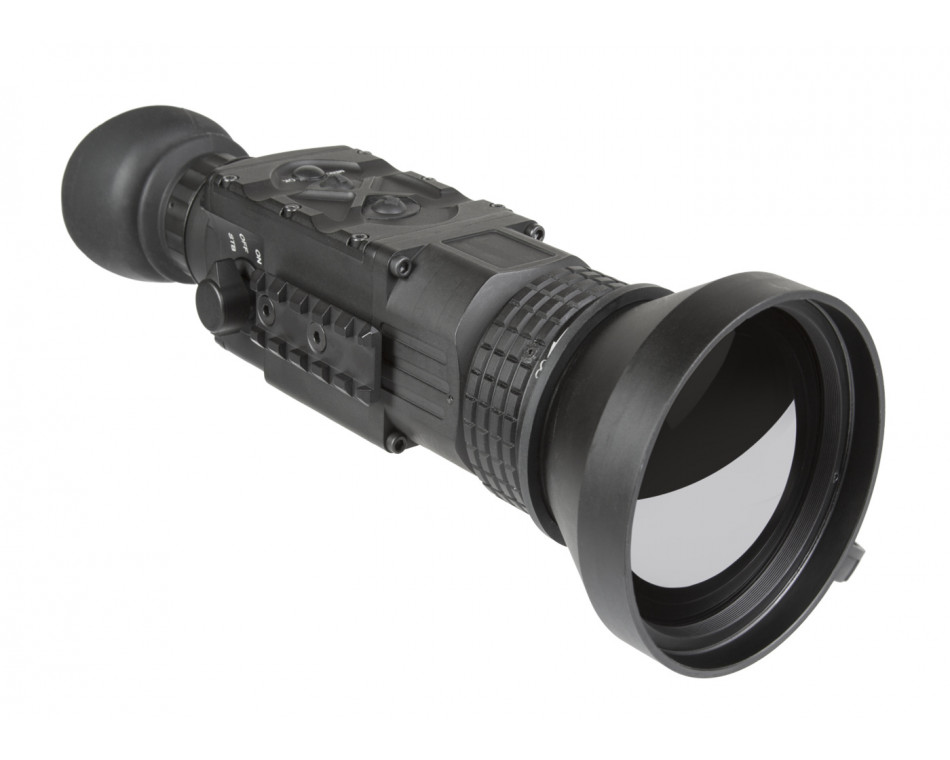

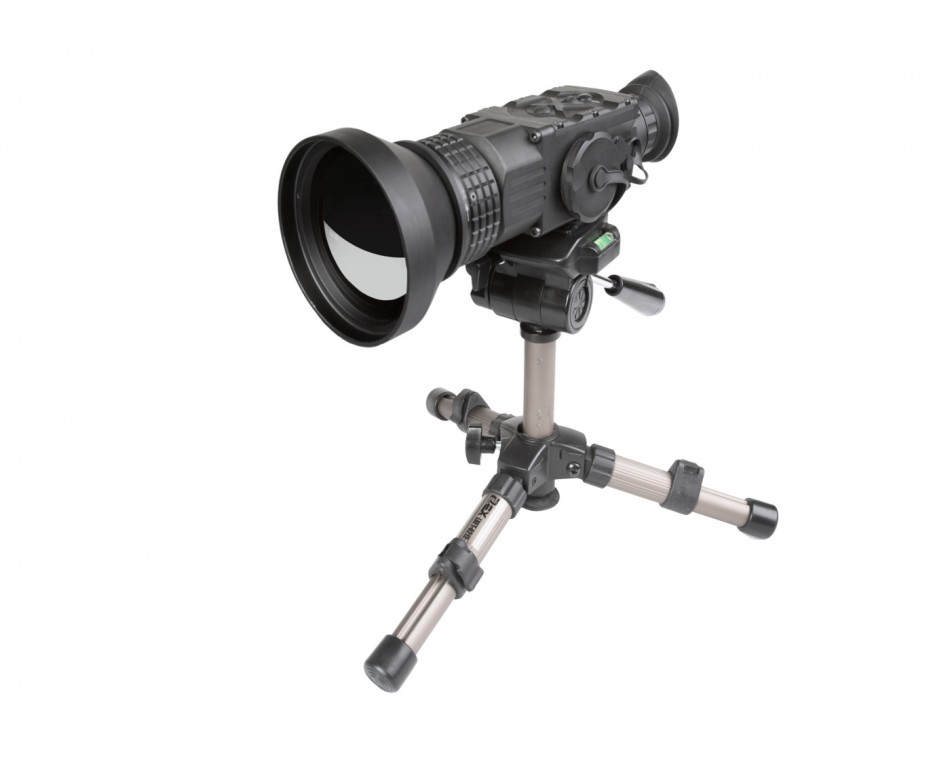

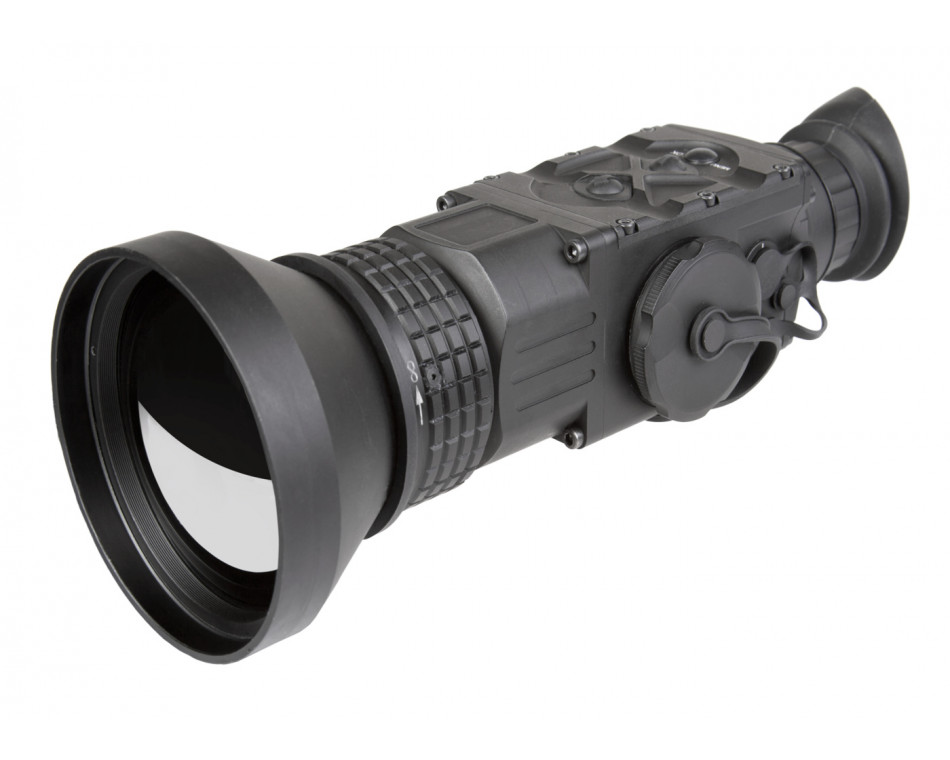

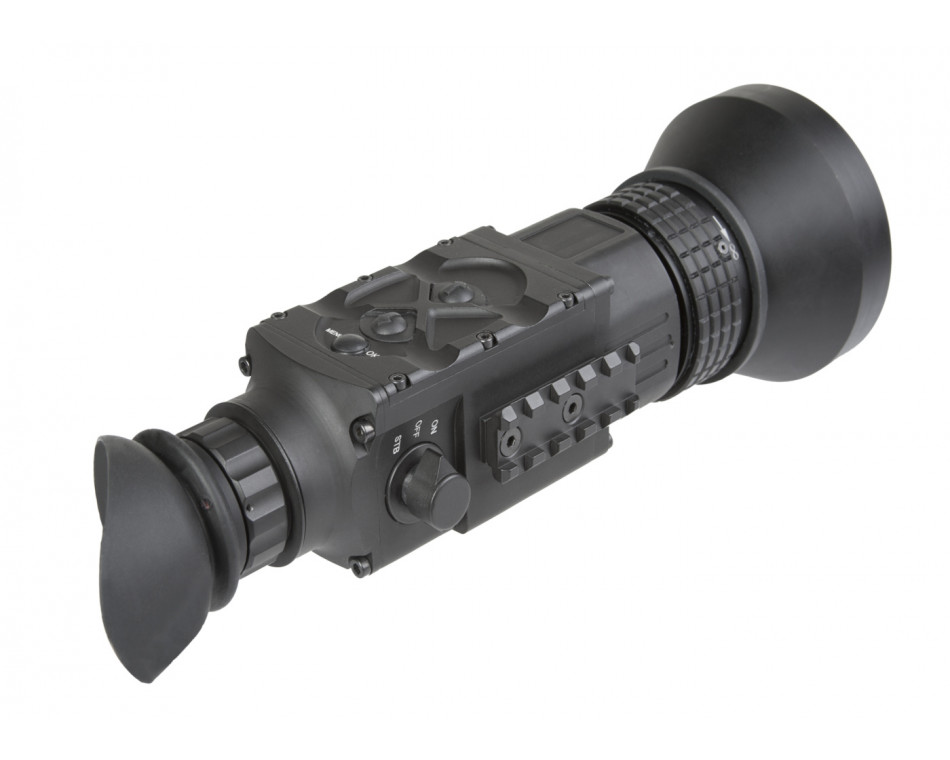

AGM ASP is a range of the most sophisticated thermal monoculars on the market today. Based on the cores of the FLIR Tau 2 VOx microbolometer and produced from a premium aircraft aluminum metal alloy, it ensures long service life and excellent features for even the most demanding customers. This non-cooled Long Wavelength AGM thermal imaging camera is designed for both daytime and night-time applications, regardless of the environment and weather conditions. A wide range of different zoom and pan lenses (25, 50 and 75 mm) allows the user to work with it either as a small pocket monocular for thermal imaging or as a long-range monitoring device. The ASP thermal monocular could be attached simply to an extra-battery for longer working times. An additional WiFi module is also included for real-time video sharing and recording.
Detector type
FLIR Tau 2 336 x 256 17µm Uncooled Microbolometer
Refresh rate
60 Hz
Resolution
336x256
Start up
3 seconds
Lens system
75 mm; F/1.0
Optical magnification
5.2×
Field of view (H × X)
4.3° x 3.3°
Digital zoom
1x, 2x, 4x
Diopter adjustment range
-5 to +5 dpt
Focusing range
10 m to infinity
Display
(800x600)
Video output
PAL (768x574 pixels)/ NTSC (640x480 pixels)
Temperature imaging palettes
White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM
Interfacing
S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder) Micro USB (External Battery Pack)
Battery Type
Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2)
Battery Life (Operating)
Up to 4 hr (optional up to 12 hrs)
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Weight
0.83kg (1.8 lbs)
Overall Dimensions
248 × 89 × 89 mm (9.8 × 3.5 × 3.5 in)
Package Inludes
Thermal imaging monocular, Lens Cloth, Soft Carrying Case, User Manual
