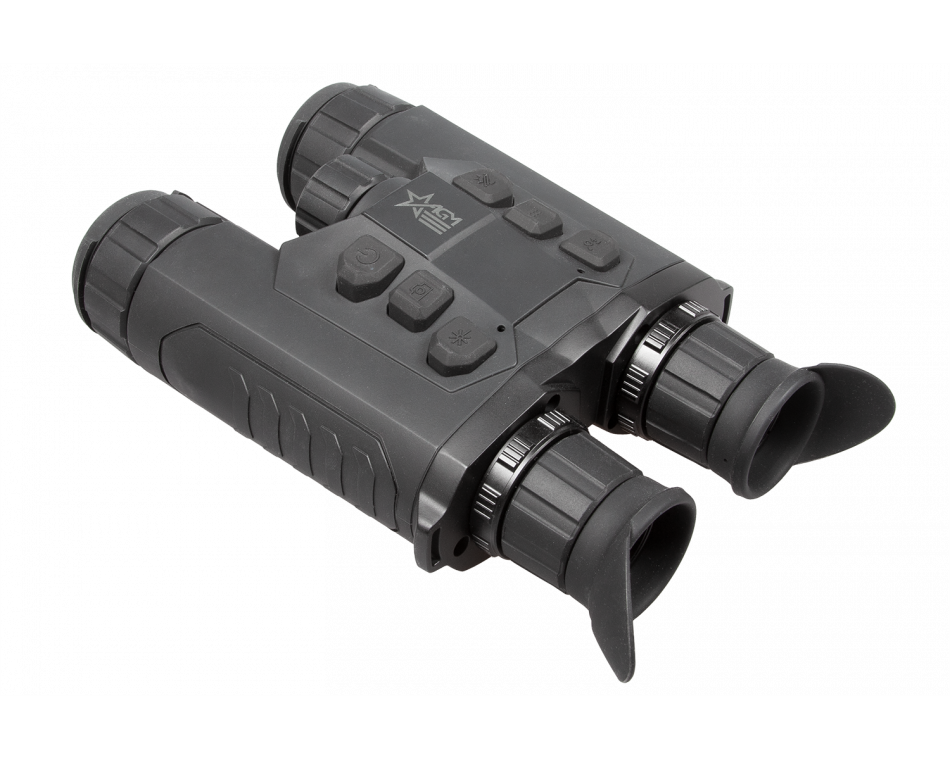

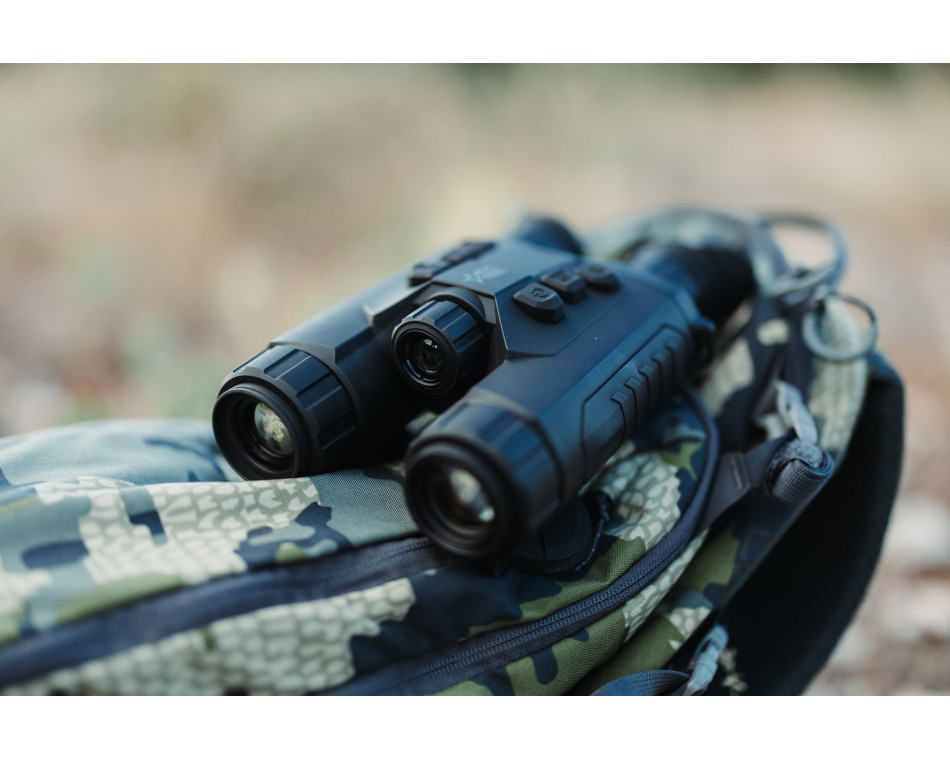

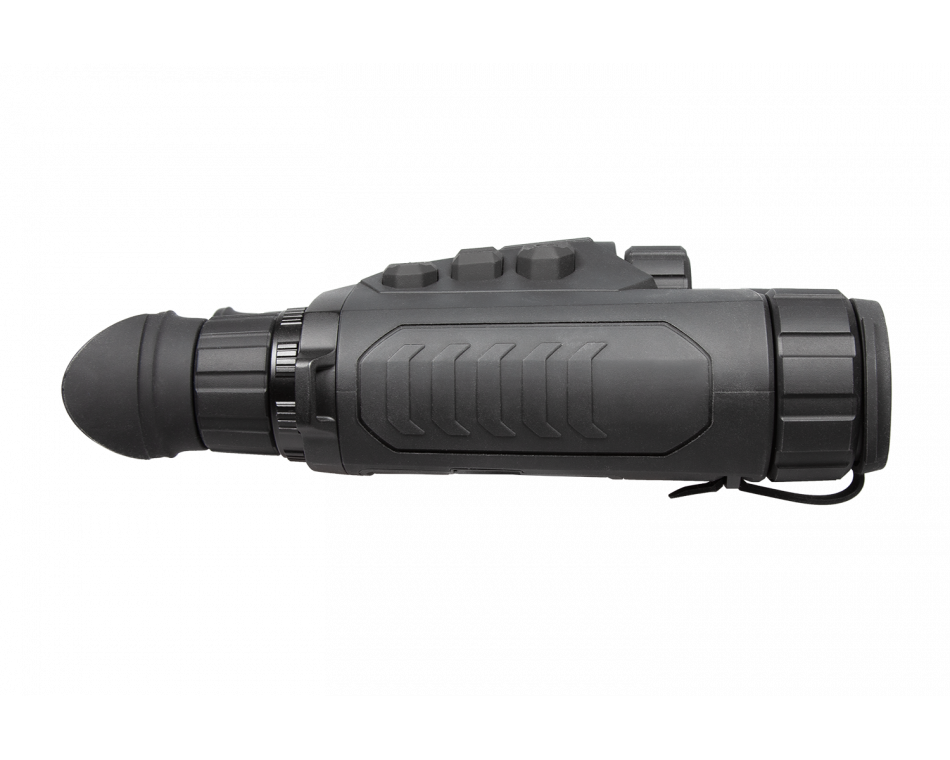

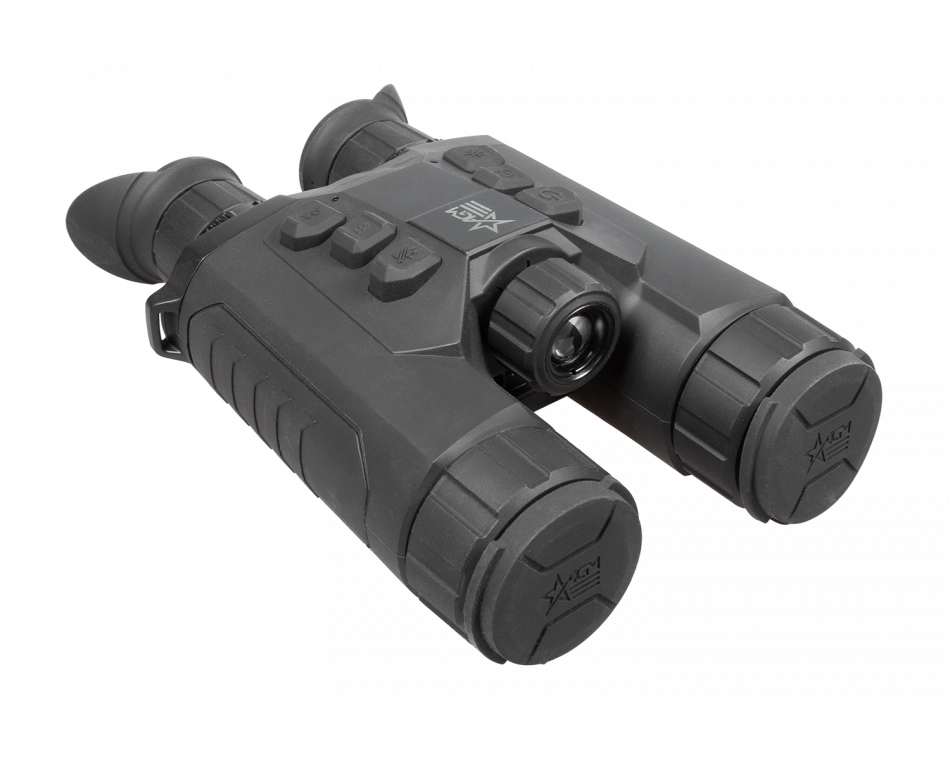

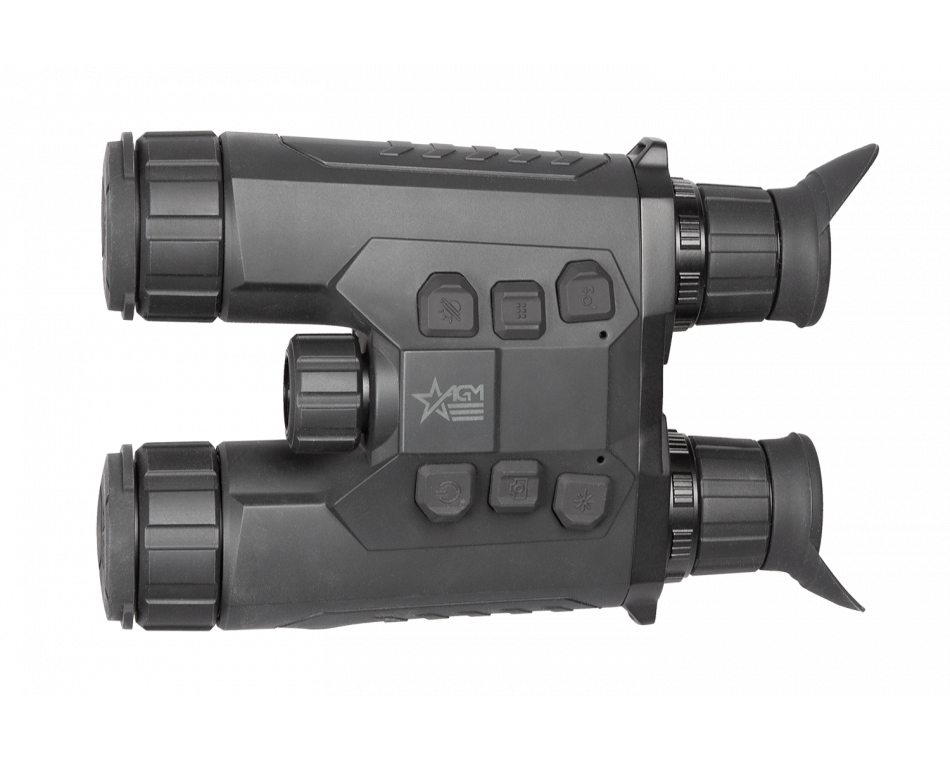

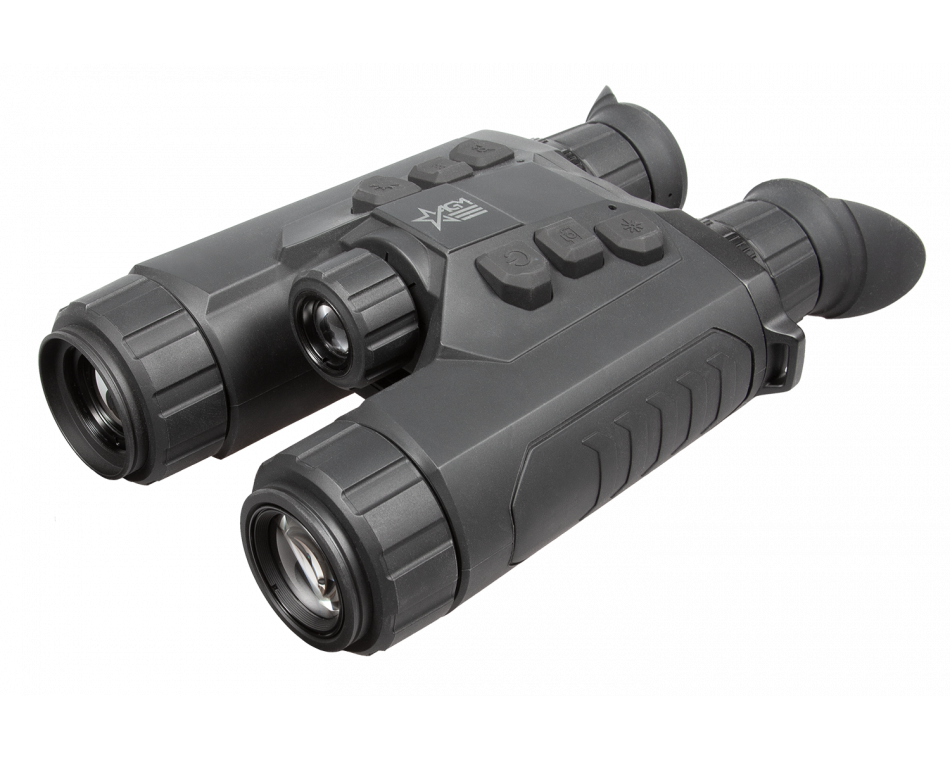

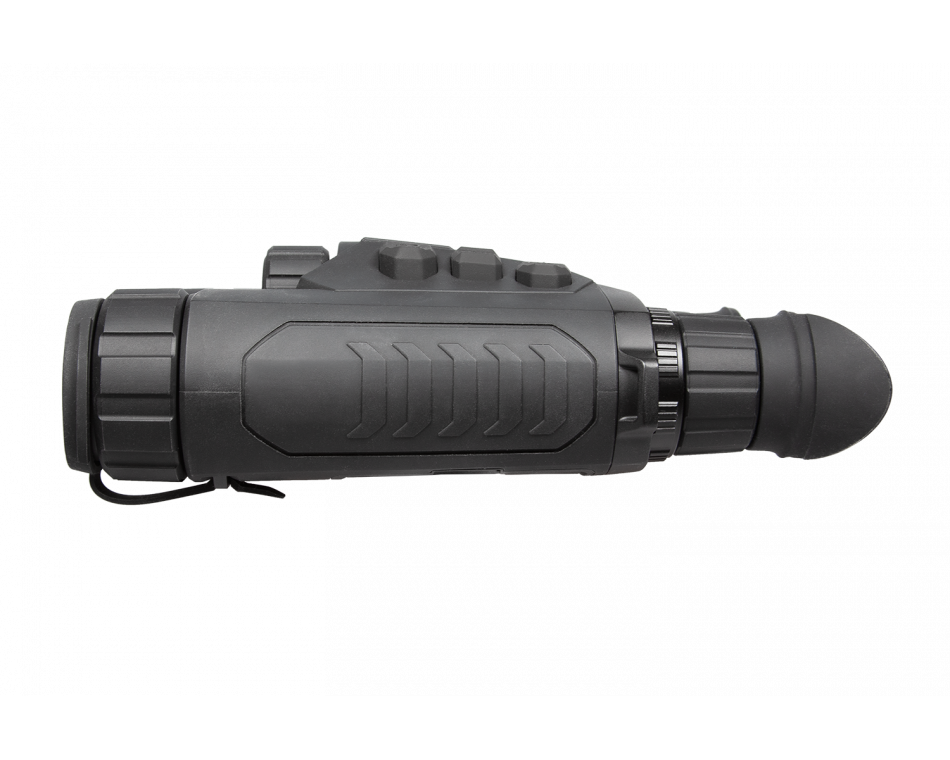

AGM ObservIR LRF 25-256

Thermal imaging
Part #OBSE25-256-LRF
0 reviews | Write a review
Thermal imaging
Part #OBSE25-256-LRF
0 reviews | Write a review

Characteristics

Detector type: 12μm VOx Uncooled Focal Plane Array

Resolution: 256x192



Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Compare
Package Includes
  • 4x 18650 Rechargeable Battery
  • Battery Charger
  • USB Cable
  • Power Adapter
  • Tripod Adapter
  • Quick Start Guide
  • User Manual
  • Lens Cloth
  • Neck Strap
$1,645.00
Quick Order
Add to cart

Description And features

The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind these binocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron detector. Unlike other thermal binoculars on the market, the ObservIR LRF also come outfitted with a digital day/night channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 1,000m laser rangefinder simply takes the ObservIR LRF to another level, and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility. The ObservIR LRF monoculars also come packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high sensitivity thermal detector, 25mm Germanium lens with a 1.0 aperture, 3840x2160 ultra-low light CMOS sensor, various viewing modes, multiple color palettes, up to 4X digital zoom, picture-in picture mode, built-in laser rangefinder, GPS module, long-range IR illuminator, up to 8 hours of battery life on removable, rechargeable 18650 batteries, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes four 18650 batteries, wrist strap and charger

Warning: California's Proposition 65

  • 12μm high-sensitivity thermal sensor
  • 256x192 thermal resolution
  • 1x, 2x, 4x digital zoom
  • Dual-spectrum thermal and digital day/night system
  • Digital image processing technology
  • Ultra-low illumination optical channel
  • 3840×2160 optical resolution
  • Built-in IR illuminator
  • Eye-safe 1,000 m laser rangefinder
  • 1920×1080 resolution, 0.49-inch OLED display
  • Digital Magnetic Compass
  • Built-in GPS module
  • Video/audio recording and snapshot capture
  • Built-in 64 GB EMMC storage
  • Wi-Fi hotspot
  • Standby mode
  • 8-hour continuous operation on a single charge
  • Auto screen-off function to saving energy
  • External power supply capability
  • Rugged housing with rubber overmolding
  • Waterproof and dustproof

Specifications

Interpupillary Distance

60 mm to 74 mm

Detector type

12μm VOx Uncooled Focal Plane Array

Standby Mode

Yes

Refresh rate

50 Hz

Lens system

Thermal 25 mm; F1.0 Optical 5.5x – 22x

NETD

Less than 35 mK (25°C, F#=1.0)

Field of view (H × X)

Thermal 7.0° × 5.3° Optical 6.9° × 4.1°

Digital zoom

1x, 2x, 4x

Diopter adjustment range

-5 to +3 dpt

Monitor

1920×1080, 0.49 inch, OLED, 50 FPS

Display

Day, Night, Auto

Storage

Built-in 64 GB EMMC

Battery Type

Two 18650 rechargeable battery (removable)

Wi-Fi

Yes

Battery Life (Operating)

Up to 8 hours continuous running (@25°C, WiFi, IR and LRF off)

Weight

0.89 kg (1.96 Ib)

Protection Level

IP67 (Waterproof)
