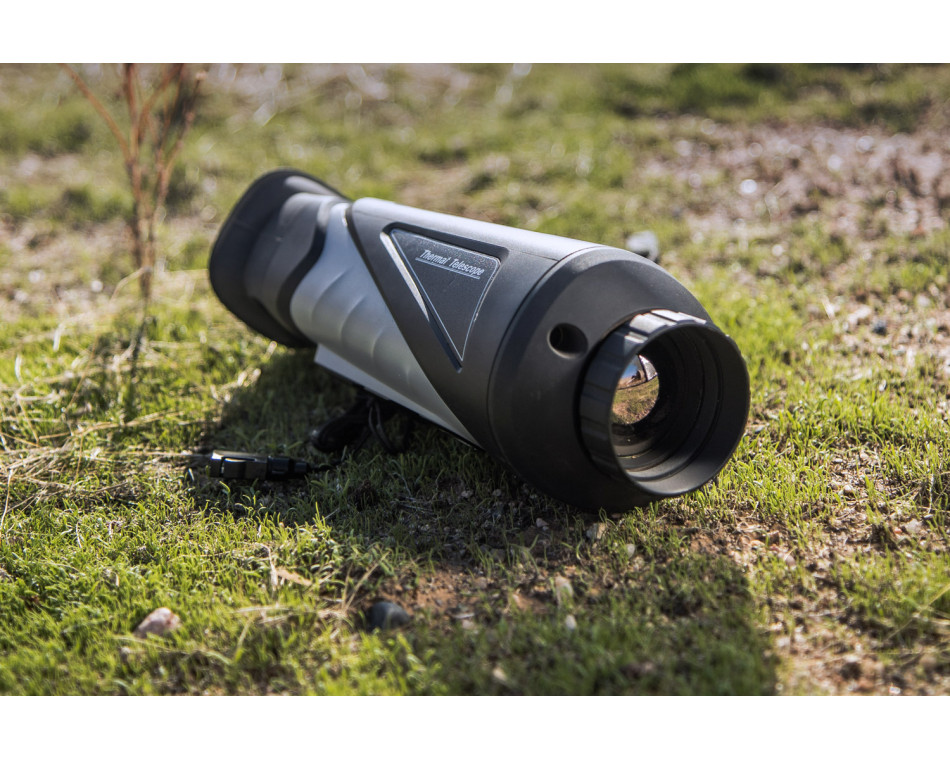

The Asp TM-384 Portable Thermal Monocular for observation is fitted with an IR sensor 384 × 288 and an OLED monitor 1024 × 768. It provides the following features: monitoring, tracking of hot spots, distance measurement, Wi-Fi, ets. The newly developed high sensitivity integrated heat sensor ensures clear images even in complete dark conditions. The monocular is mostly applied to situations like police patrols, law and order, search and rescue, narcotics control, contraband, illegal capture, trekking, trail and hunting, etc. FUNCTIONS Distance meter: The gadget provides a distance measurement feature after mark-up the top and bottom of the goal and input the target height. Hot Spot Mark: The gadget identifies and notes the highest temp-point of a hot spot. Wi-Fi & Hot Spot: The product can take shots, capture video and setup options through APP after being connected to the smartphone. Switching modes: The unit includes a pallet switch and distance reading. Storage: The integrated storage module can record video/photo. Digital zoom: The device provides 1× and 2× digital zoom capability.
Image sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution
384*288
Detector Pitch
17um
Response Wavebond
8um to 14um
NETD
< 35mk(@25°C,F#=1.0)
Optical magnification
2.4x
Lens (focal length)
35mm
Field of view (H × X)
10.66° x 8°
F number
1.0
Digital zoom
2X
Monitor
0.39-inch, OLED, 1024 × 768
Hot Track
Yes
Imaging palettes
Black hot White hot Red hot Fusion
Storage
Built-in memory module (16GB)
Record Video
Support on-board video recording
Capture Snapshot
Yes
Battery Type
Lithium Battery
Wi-Fi
Yes
Battery Operating Time
Up to 5 hours continuous running
Battery Capacity Display
Yes
Power supply
5V DC/2A, 2W
Weight
460 g (1.01 lb)
Working Temperature/ Humidity
-30 °C to 55 °C (-22 °F to 131 °F)
Overall Dimensions
202 × 74 × 66 mm (7.9 × 2.9 × 2.6 in)
Protection Level
IP67
